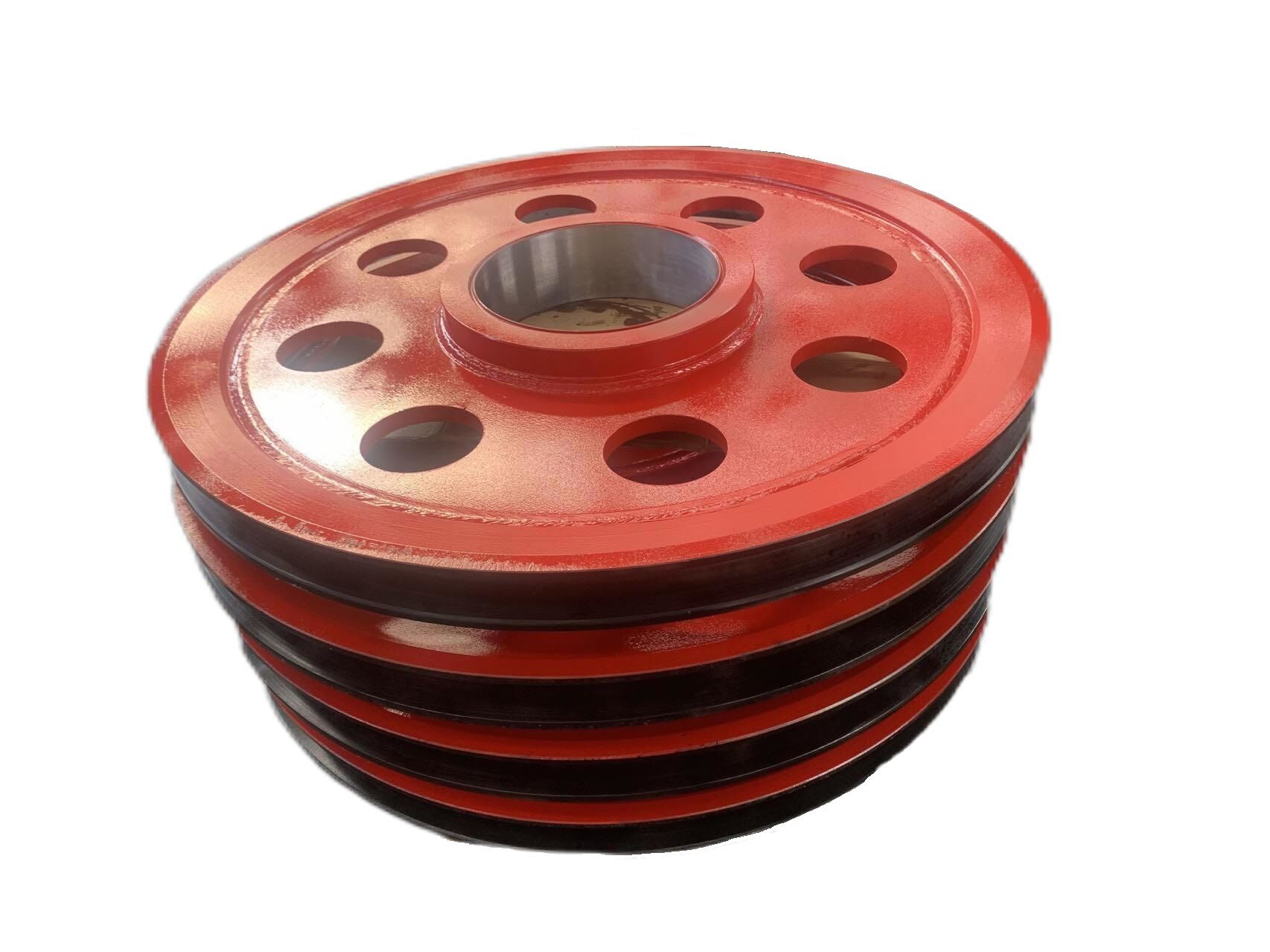

Sheave
Our company produces forged welding Sheaves for petroleum machinery, strictly following the requirements of API Spec 8C. The components adopt forging technology, and the welding process uses industrial automatic welding machines to ensure welding performance. The rope groove area uses medium frequency quenching technology to improve hardness and improve service life.
Description
| API8C Sheave Selection Table | |||||
| Items | Size | Rope Dia.(mm) | Bearing Model | Sheave Inner HoleDia. （mm） | Weight（kg） |
| 1 | ф 1524 | ф35(R18.7) | 37941K | ф276.225 | 425 |
| 2 | ф 1524 | ф35(R18.7) | 37951K | ф347.662 | 398 |
| 3 | ф 1524 | ф38(R20.4) | 37961K | ф393.7 | 390 |
| 4 | ф 1524 | ф38(R20.4) | 37951K | ф347.662 | 410 |
| 5 | ф 1524 | ф38(R20.4) | 37971K | ф444.5 | 425 |
| 6 | ф 1524 | ф45(R24) | 37971K | ф444.5 | 375 |
| 7 | ф 1270 | ф32(R16.9) | 37941K | ф276.225 | 330 |
| 8 | ф 1270 | ф35(R18.7) | 37951K | ф347.662 | 315 |
| 9 | ф 1270 | ф35(R18.7) | 2097952K | ф360 | 298 |
| 10 | ф 1120 | ф32(R16.9) | 2097938E | ф260 | 245 |
| 11 | ф 1120 | ф29(R15.5) | 2097938E | ф260 | 245 |
| 12 | ф 1120 | ф32(R16.9) | 37941K | ф276.225 | 230 |
| 13 | ф 1120 | ф32(R16.9) | 2097952K | ф360 | 215 |
| 14 | ф 915 | ф26(R13.5) | * | ф210 | 190 |
| 15 | ф 915 | ф29(R15.5) | * | ф210 | 185 |
| 16 | ф 915 | ф32(R16.9) | * | ф260 | 185 |
| 17 | ф 915 | ф29(R15.5) | * | ф260 | 190 |
| 18 | ф 915 | ф29(R15.5) | * | ф250 | 195 |
| 19 | ф 760 | ф26(R13.5) | * | ф250 | 165 |
| 20 | ф 760 | ф29(R15.5) | * | ф250 | 160 |
| 21 | ф 760 | ф26(R13.5) | * | ф210 | 150 |
| 22 | ф 760 | ф29(R15.5) | * | ф210 | 150 |
| 23 | ф 760 | ф32(R16.9) | * | ф250 | 135 |
| 24 | ф 760 | ф22(R12) | * | ф210 | 140 |
| 25 | ф 610 | ф14.5(R7.5) | * | ф180 | 60 |
| 26 | ф 610 | ф26(R13.5) | * | ф210 | 60 |
| 27 | ф 610 | ф22(R12) | * | ф210 | 60 |
| 28 | ф 610 | ф22(R12) | * | ф180 | 62 |
| 29 | ф 610 | ф16(R8.5) | * | ф210 | 65 |
| 30 | ф 500 | ф16(R8.5) | * | ф125 | 48 |
| 31 | ф 500 | ф22(R12) | * | ф180 | 50 |
| 32 | ф 500 | ф16(R8.5) | * | ф180 | 48 |
| 33 | ф 500 | ф19(R10) | * | ф125 | 50 |
| 34 | ф 500 | ф14.5(R7.5) | * | ф125 | 50 |
| 35 | ф 500 | ф14.5(R7.5) | * | ф180 | 48 |
| 36 | ф 400 | ф19(R10) | * | ф125 | 36 |
| Remark：*User Selection | |||||
