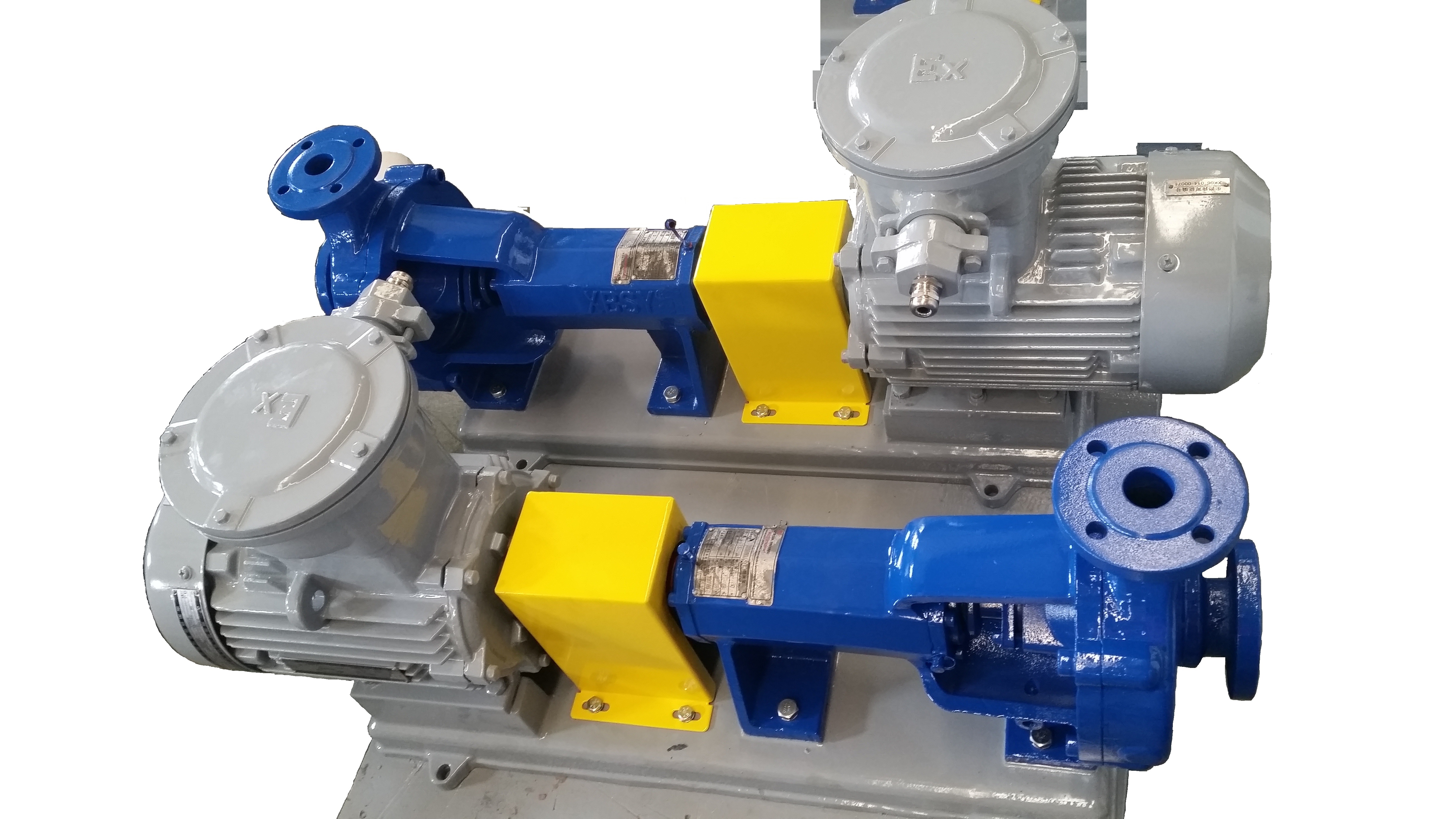

BF2202010800 BF160201-1200B1 BF1301010800 BF1301020800 BF1001010800 BF1001020800 BF0801010800 BF0801020800 BF0501010800 BF0501020800 Electric Spray Pump
Spray pump is mainly used for oil drilling mud pump supporting equipment, its role is to wash and cool the cylinder liner, piston and other occasions for conveying mud during the operation of the pump. Spray pump is mainly composed of pump body, seal pump cover, seal, impeller, pump seat and so on. The main advantages of its structure are: the main seal adopts mechanical seal to ensure no leakage operation. In addition, the pump has two ways of direct motor drive and pulley drive.
Description
Spray pump is mainly used for oil drilling mud pump supporting equipment, its role is to wash and cool the cylinder liner, piston and other occasions for conveying mud during the operation of the pump. Spray pump is mainly composed of pump body, seal pump cover, seal, impeller, pump seat and so on. The main advantages of its structure are: the main seal adopts mechanical seal to ensure no leakage operation. In addition, the pump has two ways of direct motor drive and pulley drive.
| Model number | Flow rate (m3/h) |
lifts | Efficiency | Rotational Speed | Power(kW) | |
| (m) | (%) | (r/min) | Shaft Power | Matching Power | ||
| 32SB180J-2.2kW | 7.5 | 10 | 48 | 1420/1750 | 0.55 | 2.2 |
| 32SB180J-4kW | 9 | 14 | 48 | 1750 | 0.93 | 4 |
| 40SB180J-3kW | 15 | 10 | 53 | 1420/1750 | 0.78 | 3 |
| 32PL | 7.5 | 10 | 48 | 1420 | 0.55 | / |
| 32PL(B) | 7.5 | 10 | 48 | 1420 | 0.55 | / |
