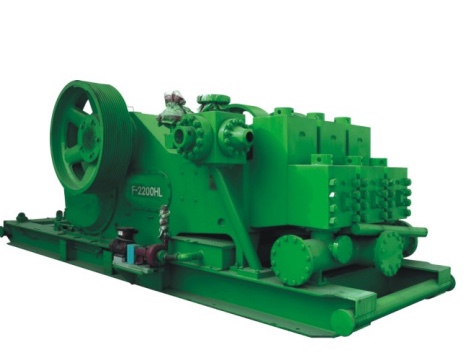

F-2200/2200HL Mud Pump
F-2200HL drilling pump consists of two parts: power end and hydraulic end. The power end is used to transmit power, convert motion mode and speed, and provide appropriate power for the hydraulic end; The hydraulic end is used to convert mechanical energy into liquid internal energy to transport mud.
Description
F-2200HL drilling pump consists of two parts: power end and hydraulic end. The power end is used to transmit power, convert motion mode and speed, and provide appropriate power for the hydraulic end; The hydraulic end is used to convert mechanical energy into liquid internal energy to transport mud.
| Model | F-2200 | F-2200HL |
| Type | Triplex single acting piston | Triplex single acting plunger piston |
| Max. Liner Size * stroke |
230*356mm(9"*14") | 230*356mm(9"*14") |
| Strokes rating r/min |
105 | 105 |
| Power Rating Kw(HP) |
1640(2200) | 1640(2200) |
| Gear type | Herringbone gear | Herringbone gear |
| Gear ratio | 3.512:1 | 3.512:1 |
| Lubricating | Forced and splashing | Forced and splashing |
| Suction inlet Flange |
12" Flange (305mm Approx) |
12" Flange (305mm Approx) |
| Discharge outlet Flange | 5" Flange,5000PSI | 5" Flange,10000PSI |
| Pinion shaft Dia. | 254mm(10") | 254mm(10") |
| Key,mm(in) | 63.5*44.45 (2 1/2"*1 3/4") |
63.5*44.45 (2 1/2"*1 3/4") |
| Valve pots | Valve-over-valve API 8# |
L type API 8# |
| Approx.Weight | 38460KG(84790LB) | 43080KG(94980LB) |
