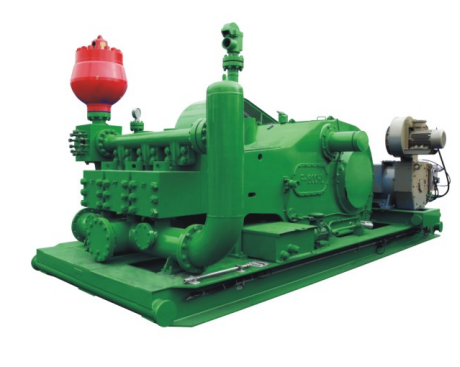

F-1600HL Mud Pump
F-1600HL drilling pump is an important equipment of drilling rig. The
application is that transmit drilling fluid to the well bottom by high pressure manifold of circulating system to cool the drill bits, clean the bottom of well, break stone, bring cuttings and balance pressure of stratum etc.
The design and manufacturing of F-1600HL drilling pump conforms to the requirements of API Spec 7K Drilling and Well Servicing Equipment.
application is that transmit drilling fluid to the well bottom by high pressure manifold of circulating system to cool the drill bits, clean the bottom of well, break stone, bring cuttings and balance pressure of stratum etc.
The design and manufacturing of F-1600HL drilling pump conforms to the requirements of API Spec 7K Drilling and Well Servicing Equipment.
Description
F-1600HL drilling pump is an important equipment of drilling rig. The
application is that transmit drilling fluid to the well bottom by high pressure manifold of circulating system to cool the drill bits, clean the bottom of well, break stone, bring cuttings and balance pressure of stratum etc.
The design and manufacturing of F-1600HL drilling pump conforms to the requirements of API Spec 7K Drilling and Well Servicing Equipment.
| Model | F-1600/F1600L |
| Type | Triplex single acting piston |
| Max. Liner Size * stroke |
180*305mm(7"*12") |
| Strokes rating r/min |
120 |
| Power Rating Kw(HP) |
1193(1600) |
| Gear type | Herringbone gear |
| Gear ratio | 4.206:1 |
| Lubricating | Forced and splashing |
| Suction inlet Flange |
12" Flange (305mm Approx) |
| Discharge outlet Flange | 5" Flange,5000PSI |
| Pinion shaft Dia. | 215.9mm(8 1/2") |
| Key,mm(in) | 50.8*50.8 (2"*2") |
| Valve pots | Valve-over-valve/L type API 7# |
| Approx.Weight | 27020KG/26030KG |
