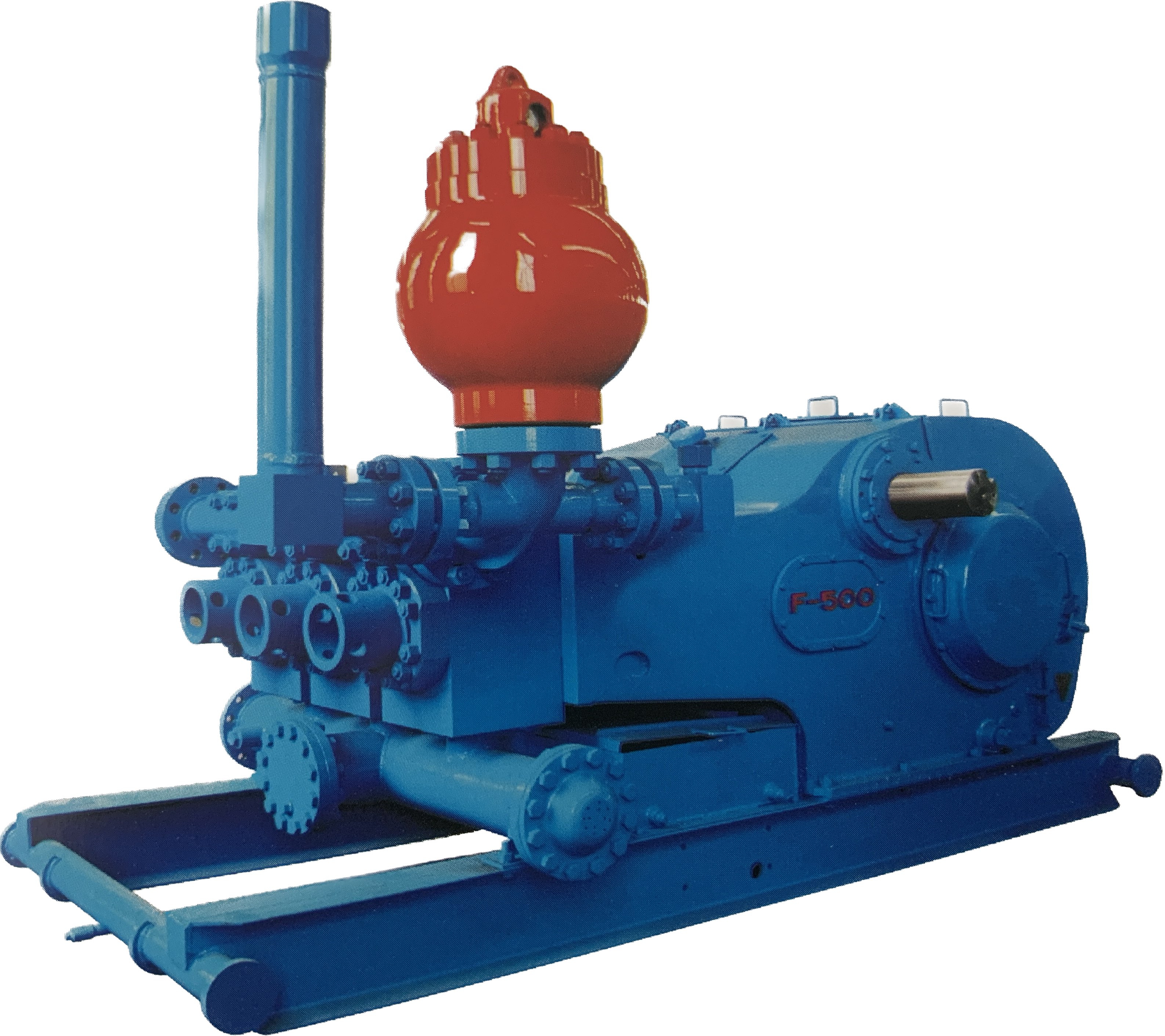

F500 Mud Pump
I. Features of series F500 mud pump:
Having long stroke, being able to operate under low stroke to lengthen the use of expendable parts at the fluid end;
Forced lubrication combined with splash lubrication to make lubrication effect;
Advanced structure, durable, can ensure itself to operate smoothly, and meet the special requirements of customers to drill medium deep wells;
Compact, safe, suction valve and discharge valve are interchangeable, main components of hydraulic cylinder and fluid end on each pump are interchangeable;
Durable f luid end great ly improves the performance of triplex mud pump; furthermore,its independent structure makes examination and maintenance convenient.
Having long stroke, being able to operate under low stroke to lengthen the use of expendable parts at the fluid end;
Forced lubrication combined with splash lubrication to make lubrication effect;
Advanced structure, durable, can ensure itself to operate smoothly, and meet the special requirements of customers to drill medium deep wells;
Compact, safe, suction valve and discharge valve are interchangeable, main components of hydraulic cylinder and fluid end on each pump are interchangeable;
Durable f luid end great ly improves the performance of triplex mud pump; furthermore,its independent structure makes examination and maintenance convenient.
Description
I. Features of series F500 mud pump:
Having long stroke, being able to operate under low stroke to lengthen the use of expendable parts at the fluid end;
Forced lubrication combined with splash lubrication to make lubrication effect;
Advanced structure, durable, can ensure itself to operate smoothly, and meet the special requirements of customers to drill medium deep wells;
Compact, safe, suction valve and discharge valve are interchangeable, main components of hydraulic cylinder and fluid end on each pump are interchangeable;
Durable f luid end great ly improves the performance of triplex mud pump; furthermore,its independent structure makes examination and maintenance convenient.
| Model | F-500 |
| Type | Triplex single acting piston |
| Max. Liner Size * stroke |
170*191mm(6 3/4"*7.5") |
| Strokes rating r/min |
165 |
| Power Rating Kw(HP) |
373(500) |
| Gear type | Herringbone gear |
| Gear ratio | 4.286:1 |
| Lubricating | Forced and splashing |
| Suction inlet Flange |
8" Flange (203mm Approx) |
| Discharge outlet Flange | 4" Flange,5000PSI |
| Pinion shaft Dia. | 139.7mm(5 1/2") |
| Key,mm(in) | 31.75*31.75 (1 1/4"*1 1/4") |
| Valve pots | Valve-over-valve API 5# |
| Approx.Weight | 9770KG(21540LB) |
