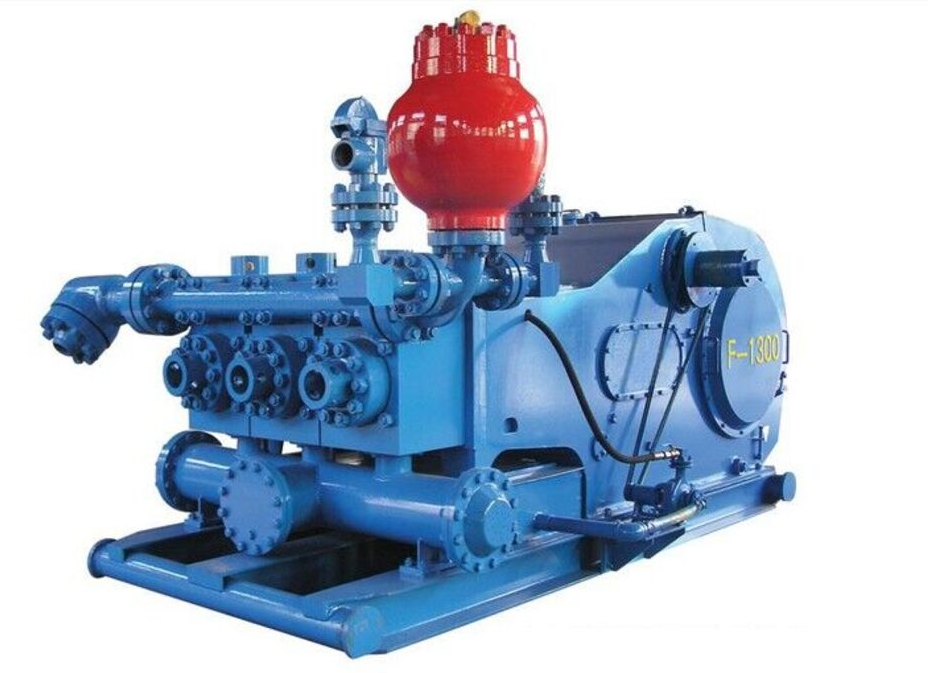

F1300 Mud Pump
I. Features of F1300 MUD PUMP:
Having long stroke, being able to operate under low stroke to lengthen the use of expendable parts at the fluid end;
Forced lubrication combined with splash lubrication to make lubrication effect;
Advanced structure, durable, can ensure itself to operate smoothly, and meet the special requirements of customers to drill medium deep wells;
Compact, safe, suction valve and discharge valve are interchangeable, main components of hydraulic cylinder and fluid end on each pump are interchangeable;
Durable f luid end great ly improves the performance of triplex mud pump; furthermore,its independent structure makes examination and maintenance convenient.
Having long stroke, being able to operate under low stroke to lengthen the use of expendable parts at the fluid end;
Forced lubrication combined with splash lubrication to make lubrication effect;
Advanced structure, durable, can ensure itself to operate smoothly, and meet the special requirements of customers to drill medium deep wells;
Compact, safe, suction valve and discharge valve are interchangeable, main components of hydraulic cylinder and fluid end on each pump are interchangeable;
Durable f luid end great ly improves the performance of triplex mud pump; furthermore,its independent structure makes examination and maintenance convenient.
Description
I. Features of F1300 MUD PUMP:
Having long stroke, being able to operate under low stroke to lengthen the use of expendable parts at the fluid end;
Forced lubrication combined with splash lubrication to make lubrication effect;
Advanced structure, durable, can ensure itself to operate smoothly, and meet the special requirements of customers to drill medium deep wells;
Compact, safe, suction valve and discharge valve are interchangeable, main components of hydraulic cylinder and fluid end on each pump are interchangeable;
Durable f luid end great ly improves the performance of triplex mud pump; furthermore,its independent structure makes examination and maintenance convenient.
| Model | F-1300 |
| Type | Triplex single acting piston |
| Max. Liner Size * stroke |
180*305mm(7"*12") |
| Strokes rating r/min |
120 |
| Power Rating Kw(HP) |
969(1300) |
| Gear type | Herringbone gear |
| Gear ratio | 4.206:1 |
| Lubricating | Forced and splashing |
| Suction inlet Flange |
12" Flange (305mm Approx) |
| Discharge outlet Flange | 5" Flange,5000PSI |
| Pinion shaft Dia. | 215.9mm(8 1/2") |
| Key,mm(in) | 50.8*50.8 (2"*2") |
| Valve pots | Valve-over-valve API 7# |
| Approx.Weight | 24572KG(54170LB) |
